No Flow In Flow

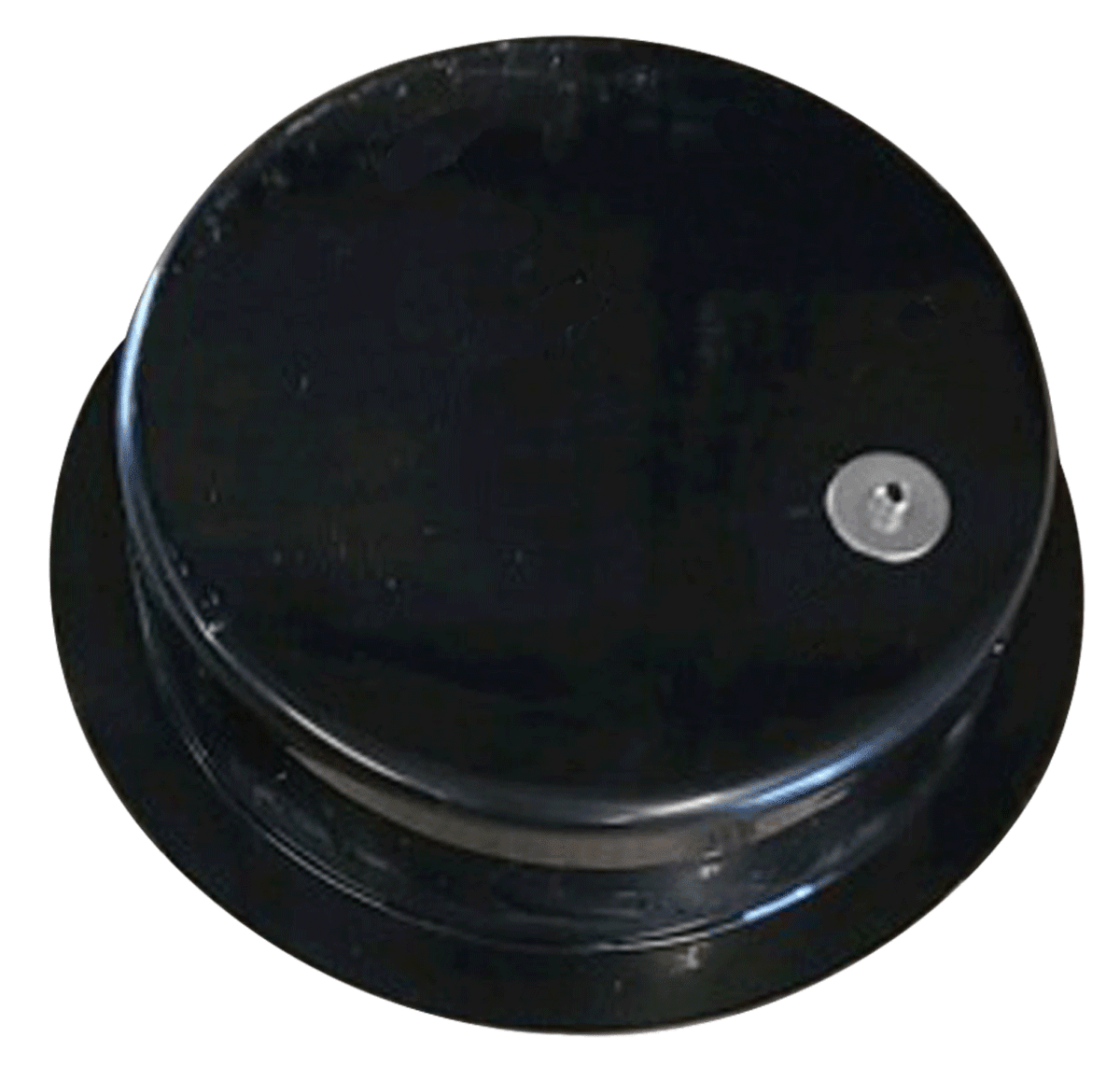

Manhole Dish / Insert

An Economical Solution to a Costly Problem
One of the most important problems facing the 21st century is water conservation. The water and sewer industry will be called upon to find new solutions to old problems to insure that water is treated and used efficiently.

During rainy weather, an average manhole contributes from 3,000 to 12, 000 gallons per day of rain water, to, the treatment systems.

The NO FLOW IN FLOW dish is made to requirements from virtually indestructible material to offer a simple to install, long lasting product that eliminates sheet flow of rain water into the sanitary sewer system. Added advantages are the elimination of debris and dirt and reduction of manhole odors and manhole cover rattle noise.

BENEFITS

• 5 year warranty on the body of the in flow dish. ( .150 Material Thickness )
• 10 year warranty on the body of the in flow dish. ( .187 Material Thickness )
• Ventilation by valve or vent hole.
• Manufactured of ultra high density, high molecular weight polyethylene. (Marlex HXM 50100)
• Brittleness temperature to a -180° Farenheit.

SPECIFICATIONS

• The dish is made of ultra high density polyethylene copolymer material that meets ASTM specifications designation D1248, Class A, Category 5, Type 111 with a minimum impact brittleness temperature of -180° F. The thickness shall be uniform 1/8" or greater. This material is corrosion proof from all gases associated with waste water collection systems.

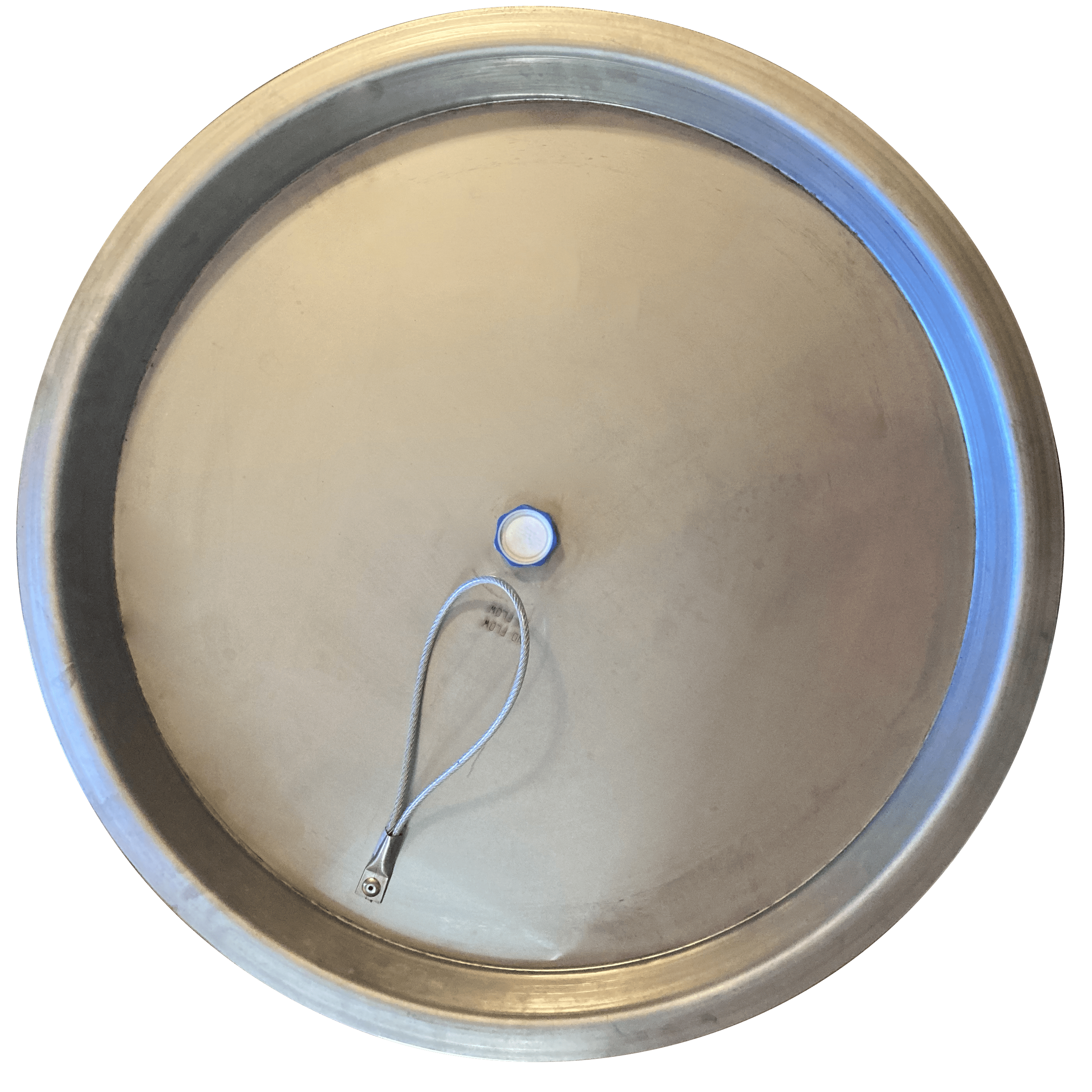

• The lift strap is made of a woven polypropylene web and is attached to the bowl of the dish by a wide head stainless steel rivet and a stainless steel 3/4" backup washer. All cut edges are seared to insure against raveling.
• Ventilation is provided by a vent hole and/or a valve located on the side of the bowl. The hole or valve allows a maximum release of 5 gallons of water per 24 hours and is not effected by debris that might collect in the bottom of the dish. Sewer gas is vented at one P.S.I. or less.

MARLEX HXM 50100... EXTRA HIGH MOLECULAR WEIGHT HEXENE COPOLYMER

CUSTOMER BENEFITS

• An excellent balance of stress cracking resistance, stiffness and melt strength make this resin an ideal candidate for large blow molded items and thermoformed parts.
• This resin has ... Good melt Strength
  ...and produces molded parts with ... Excellent stress cracking resistance, Good Rigidity, Excellent impact strength even at low temperatures.
